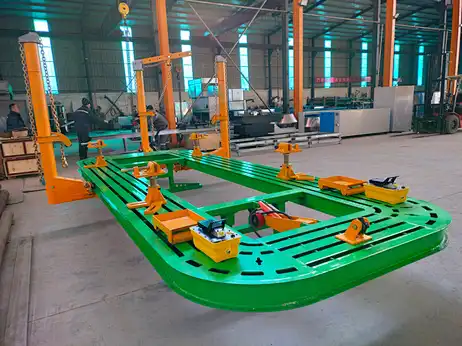

I-Beam Frame Machines | Precision Collision Repair Systems
Core Features & Benefits
High-Power Precision Pulling: Generates a powerful 95 kN (≈9.5 ton) pulling force per tower, providing ample strength to correct major structural damage on cars, SUVs, and light trucks with precise control.
Full 360° Work Access: Each pulling tower operates through a full 360° rotation, allowing technicians to approach damage from the optimal angle for efficient and accurate repairs directly towards the anchor points.
Heavy-Duty Load Capacity: The reinforced platform supports a maximum load of 3500 kg, accommodating a wide range of vehicles securely during the repair process.
Robust & Stable Work Platform: Features large, flat work surfaces (LT-520: 5200x2140mm; LT-560: 5600x2240mm) providing ample space for tools, equipment, and secure vehicle positioning.
Customizable & Adaptable: We understand that every shop’s needs are unique. Non-standard dimensions can be customized upon request, allowing you to tailor the system to your specific workshop layout and service focus.
Technical Specifications
| Specification | LT-520 Model | LT-560 Model |
|---|---|---|
| Work Platform Length | 5200 mm | 5600 mm |
| Work Platform Width | 2140 mm | 2240 mm |
| Work Platform Height | 560 mm | 560 mm |
| Max. Pulling Force (per Tower) | 95 kN | 95 kN |
| Required Air Supply Pressure | 0.8 MPa | 0.8 MPa |
| Tower Working Range (Rotation) | 360° | 360° |
| Max. Platform Load Capacity | 3500 kg | 3500 kg |
Note: Specifications are subject to change for product improvement. OEM customization is available for non-standard dimensions.
Why Choose the LT Series Frame Machine?
Builds Workshop Capability: Enables your shop to take on a wider range of complex structural repairs, increasing revenue potential and service reputation.
Ensures Repair Accuracy: A precise, stable foundation is critical for proper measuring and pulling. This system is designed to deliver reliable, repeatable results that meet industry standards.
Engineered for Durability: Constructed from high-grade materials to withstand the daily demands of a professional collision repair environment.
Supported by Expert Manufacturing: As with all our equipment, the LT Series is produced in our ISO-certified facility, ensuring quality control. Comprehensive OEM/ODM services are available for tailored solutions.
Upgrade Your Repair Center’s Core Asset
Equip your shop with the strength and precision needed for modern collision repair. Contact us today to discuss the best model for your needs, request a customized layout, or to get a detailed quote for the LT Series Frame Machine.
