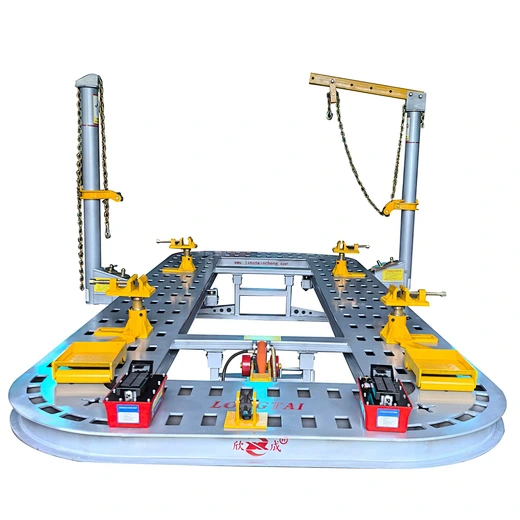

Full-page 5-Row Holes Frame Machine
Core Features & Professional Advantages
Ultimate Anchoring Precision with 5-Row Design: The high-density 5-row hole pattern maximizes anchoring point options, allowing for meticulous and direct force application. This reduces setup improvisation, enhances measurement accuracy, and is ideal for securing intricate unibody jigs and performing multi-vector pulls on complex damage.
Powerful & Controlled Correction Force: Generates a consistent 95 kN pulling force through a full 360° rotating tower, delivering the necessary power and directional freedom to methodically restore vehicle frames and structures with confidence.
Ergonomically Optimized, Adjustable Workspace: The workbench height is adjustable from 350 mm to 1050 mm, enabling shops to customize the working level to reduce technician fatigue, improve vehicle access, and seamlessly integrate with measuring systems or other shop equipment.
Robust Construction for Heavy-Duty Use: Built to support vehicles up to 3500 kg with absolute stability. The solid plate foundation ensures zero flex during high-power pulls, guaranteeing that measurements remain accurate throughout the repair process.
Tailored to Your Workshop: Available in key size configurations (e.g., 5200/5400mm L x 2100/2000mm W) with comprehensive OEM customization for non-standard dimensions, ensuring a perfect fit for your specific floor plan and operational workflow.
Technical Specifications
| Specification | Details / Model LT-BI Pro |
|---|---|
| Workbench Design | Solid Plate with 5-Row High-Density Hole Pattern |
| Workbench Length | 5200 mm / 5400 mm (Customizable) |
| Workbench Width | 2100 mm / 2000 mm (Customizable) |
| Workbench Height | Adjustable, 350 - 1050 mm |
| Max. Pulling Force | 95 kN |
| Required Air Pressure | 0.8 MPa |
| Tower Working Range | 360° Rotation |
| Max. Load Capacity | 3500 kg |
Note: We continuously improve our products and reserve the right to modify specifications. Full OEM/ODM services are available for bespoke solutions.
Why the LT-BI Pro is the Benchmark for Serious Shops
Engineered for Modern Repair Challenges: The 5-row pattern directly addresses the need for precise, multi-point anchoring in today's complex vehicle designs, making it a future-proof investment for high-quality repair facilities.
Maximizes Efficiency and Accuracy: Drastically reduces setup time and increases repeatability by providing the exact anchoring point needed, leading to faster cycle times and more predictable, accurate repair outcomes.
Uncompromising Build Quality: The combination of a solid plate and reinforced structure is designed for a lifetime of reliable service in a demanding professional environment.
Supported by Expert Manufacturing: Produced in our certified facility, the LT-BI Pro meets stringent quality standards. We stand behind it with a comprehensive warranty and full custom engineering support (OEM/ODM) to meet your exact requirements.
Achieve Unmatched Repair Accuracy
Equip your shop with the precision and flexibility demanded by today's advanced collision repair industry. Contact us for a detailed consultation, customized layout proposal, and a competitive quote for the LT-BI Pro Solid Plate Frame Machine.
Provides A Solution To Your Problem
If You Have Any Comments Or Suggestions Or Our Quality Or Service Can Not Satisfy You, Please Call Our Customer Service Center, Register Through Our Website, Our Customer Service Staff Will Be The First Time To Understand The Situation, Timely Contact With You.
Why choose CONY as your spray booth supplier?
With over 50 years of industry heritage spanning two generations and more than 20 years of hands-on manufacturing experience, we are equipped to deliver the perfect solution for any problem you encounter.
Why are our products more competitively priced than our competitors?
Three key factors give us a significant cost advantage, which we pass directly to our customers:
1：Decades of Efficiency: With over 50 years of industry experience, our manufacturing processes are highly refined and efficient. This maturity allows us to achieve greater productivity and better manage labor costs.
2：Zero Factory Rental Costs: Our facility operates on company-owned, privately-held land. This eliminates millions in annual rental expenses—a major overhead cost for many competitors—which directly lowers our production costs.
3：Pioneering Digital Management: We pioneered the adoption of a full-scale ERP system over a decade ago, achieving internal informatization, process standardization, and digital management far ahead of industry norms. This systemic efficiency minimizes waste and optimizes operations from end to end.
Do you provide warranty and after-sales service internationally?
Yes. All devices come with a 1-year free warranty. We also provide remote technical support, spare parts,and professional maintenance advice.
We have a 35-member overseas engineering service team that provides timely after-sales support to clients worldwide.
What Are The Turnaround Times For OEM Sampling And Mass Production ?
5-7days
